Hand-soldering

Now if you've decided to take the VERY FUN ROUTE of hand soldering your devboard, I'll continue with a small tutorial on how to do so!

Now hand soldering is mildly difficult, and takes quite a bit of time, but you'll learn invaluable skills lots of other people don't learn, and also earn a lot of tickets while you're at it :D

#Your kit

So the first step is buying all your components for hand soldering! Everything can just be bought on LCSC, and I'd suggest buying a couple extra components of each thing, just in case you accidentally mess up/break components!

You'll also want to have a couple other key components:

• Flux paste (not solder paste), this helps the solder bond to the pads of your board, helping to fix mistakes and is crucial. This will come in a little syringe container, and looks white/yellow depending on where you get it from (solder paste, which you don't want usually look gray!)
• Fine tip soldering iron (ToolSoldering Iron), this makes soldering in really tight spots so much easier, most tips are usually fine enough, but you just don't want like a super wide one.
• Solder, usually smaller solder is usually more convenient, but it's honestly fine to use larger
• Fine tip tweezers, I honestly wish mine were finer, but I'd suggest trying to find the smallest fine tip tweezers in your house that aren't ribbed/textured at the end
• Brass sponge, for cleaning your tip, you just dip your iron into this every once in a while to get the excess solder off!
• Silicon mat, this isn't needed, but I would HIGHLY suggest, so that your soldering iron doesn't fall off and burn you, and so you have a nice grippy surface to hold your PCB on
• Decently ventilated area, honestly I find this is less for saving you from the unhealthy fumes and more to get the smoke out of your eyes so you actually see what you're doing!
• Isopropyl alcohol and Q-Tips, these are to clean up the flux on your board after soldering, it's just once you're done, so you don't really have to have it on hand before starting!

This is what my setup looks like with all of these things:

Pretty sweet right :D

Now you're ready to get soldering!

#Soldering 0402 components

When you're soldering a small board like this, and most PCB's for that matter, you'll want to start with your smallest components first and then work your way up. In our case, we have quite a few 0402 components, which are going to be SO MUCH FUN to solder.

Lots of people don't spend time to actually learn how to properly solder these components and just go at it, but I'll try my best to describe it and you'll also want to watch this video in it's entirety!

And then you're done! I sometimes add some more flux and then clean up my joints, but it's up to you if you want to do so! This will be hard when you first start off, but it get's much easier with practice, and also better tools help a lot!

Now you want to pay close attention to your joints, to make sure that your solder is actually joined with the component! I find being in a WELL lit room helps a lot to see everything, and a microscope can be very handy!

If your component didn't form a joint with one of it's pads, you might need to get the component closer to the pad or apply flux, or apply more solder!

If you ever bridge 2 pads with solder, apply flux and they should go back to their relevant pads, it's MAGICAL....

Tutorials help a LOT here where words sometimes can't explain all, so take your time, and do it right.

I started by soldering my 0.1uF caps, because there's quite a few of them, but you could really start with whatever 0402 component you want, and then work your way up to 0603, then 0805, and then small components, then large components!

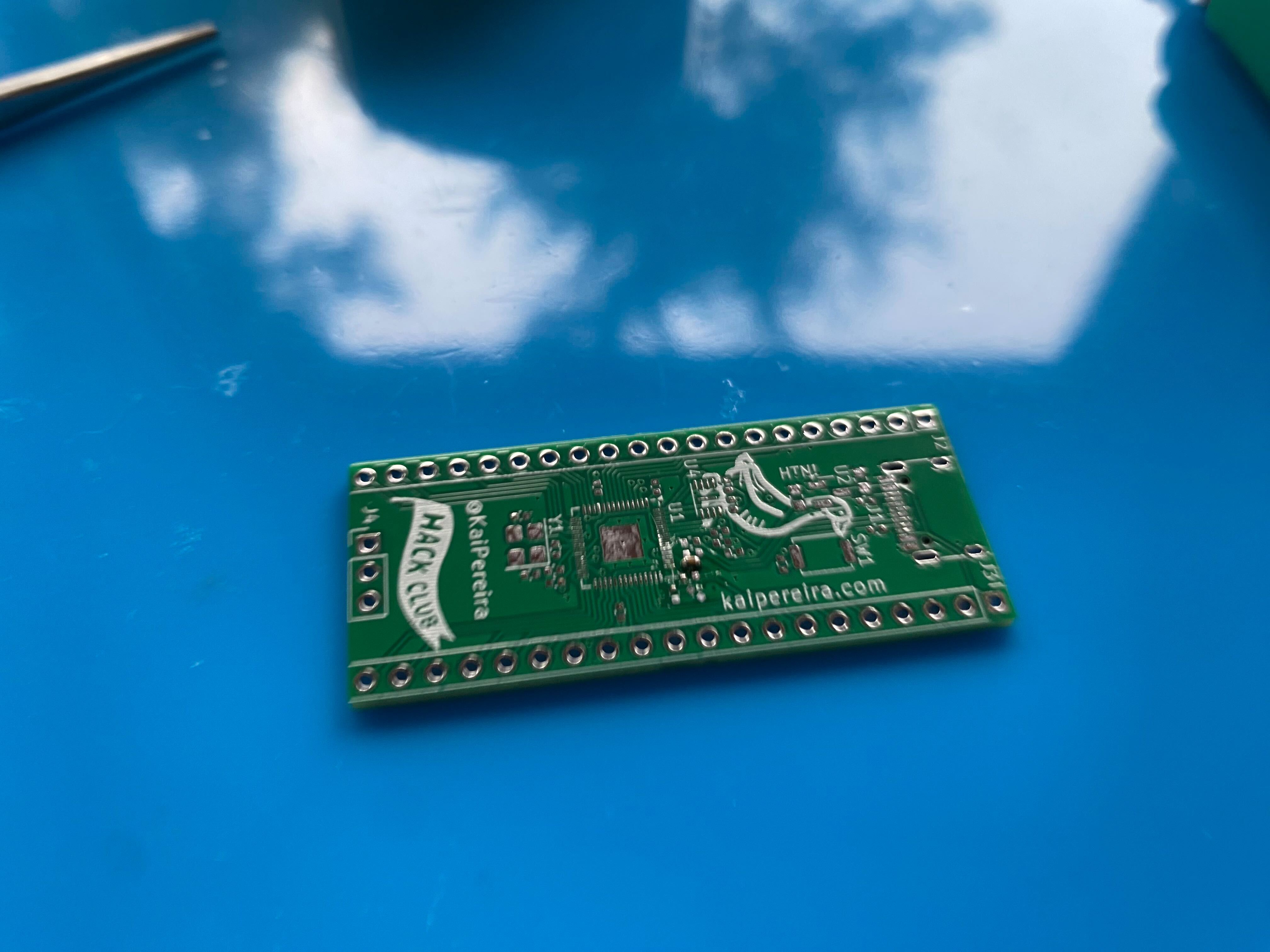

Here's my very first passive soldered onto my board:

Yes, it's SMALL, and takes lots of time. If you're currently working on this, shoot me a DM on slack @KaiPereira, I'd love to see how you're doing!
